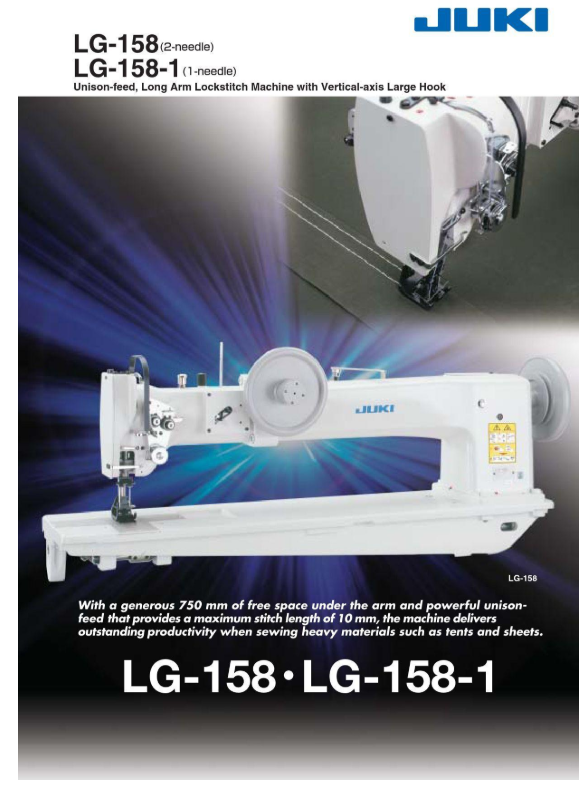

JUKI LG-158 Extra Heavy Duty Double Needle Walking Sewing Machine

Used JUKI LG-158 Heavy Duty Long Arm Double Needle Sewing Machine, 30" Arm, Includes Table (No Servo Motor Included)

SKU: LG-158

Product Overview

The JUKI LG-158 is a professional-grade, extra heavy-duty industrial sewing machine built for the most demanding applications. Featuring a 30-inch long arm, compound feed (triple feed) mechanism, and double needle lockstitch, this machine is ideal for sewing thick and bulky materials with precision and consistency.

Key Features

• Extra Long Arm: 30" arm (750mm needle to arm distance) for large and bulky projects

• Double Needle, Triple Feed: Combines drop feed, needle feed, and alternating presser feet for uniform fabric feeding

• Extra Large Bobbins: Vertical-axis hooks for long runtime between bobbin changes

• Reverse Feed: Operated via foot pedal

• Stitch Regulator: Push-button control for adjusting stitch length (up to 10mm)

• Presser Foot Locking Lever: For stable sewing on heavy material

• Built-in Bobbin Winder and Front Handwheel for easy operation and precise needle positioning

• Safety Clutch: Protects hooks from damage in case of thread jams

Applications

Perfect for sewing extra heavy-weight materials such as:

• Canvas, vinyl, leather, rubberized and laminated fabrics

• Tents, tarps, sails, truck covers, awnings, luggage

• Automotive, marine, and furniture upholstery

• Carpets, mops, matting, polishing wheels, divider curtains, field covers, and more

• Designed for lap seams, double seams, and heavy fabric structures

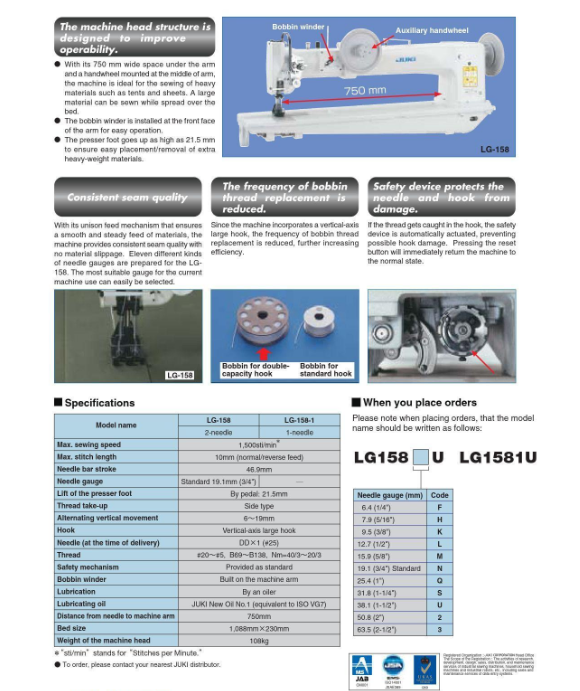

Specifications

• Needles: Double (can be converted to single)

• Needle System: DD×1 (#25)

• Thread Size: #20 to #5 / B69 to B138

• Standard Needle Gauge: 3/4" (19.1mm)

• Stitch Type: 301 Lockstitch

• Stitch Length: Max 10mm (25/64")

• Presser Foot Lift: Max 21.5mm by pedal

• Speed: Up to 1,500 SPM

• Bed Size: 1,088mm × 230mm

• Machine Head Weight: Approx. 238 lbs (108 kg)

• Clearance from Needle to Arm: 750mm (30")

Included with Purchase

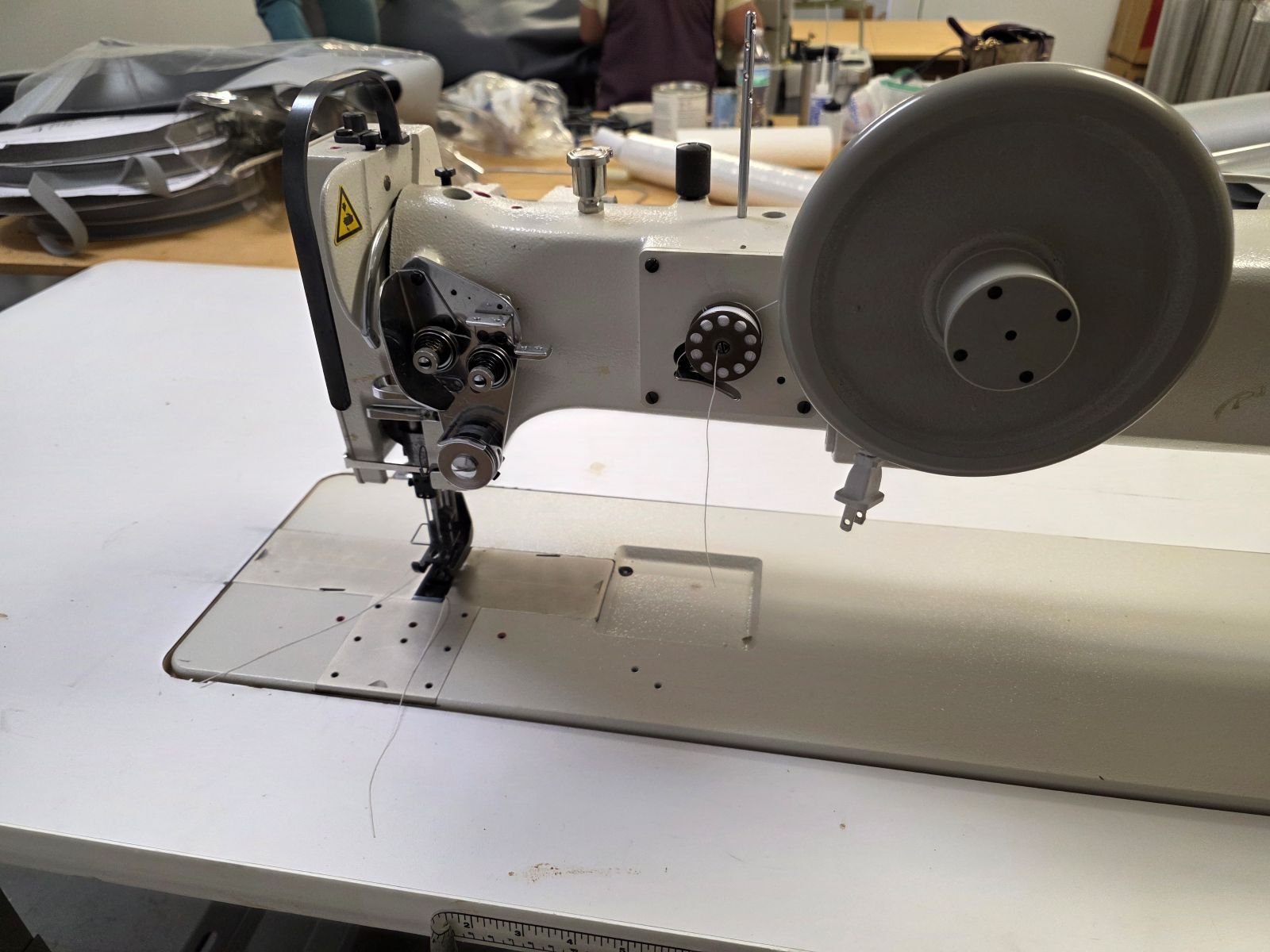

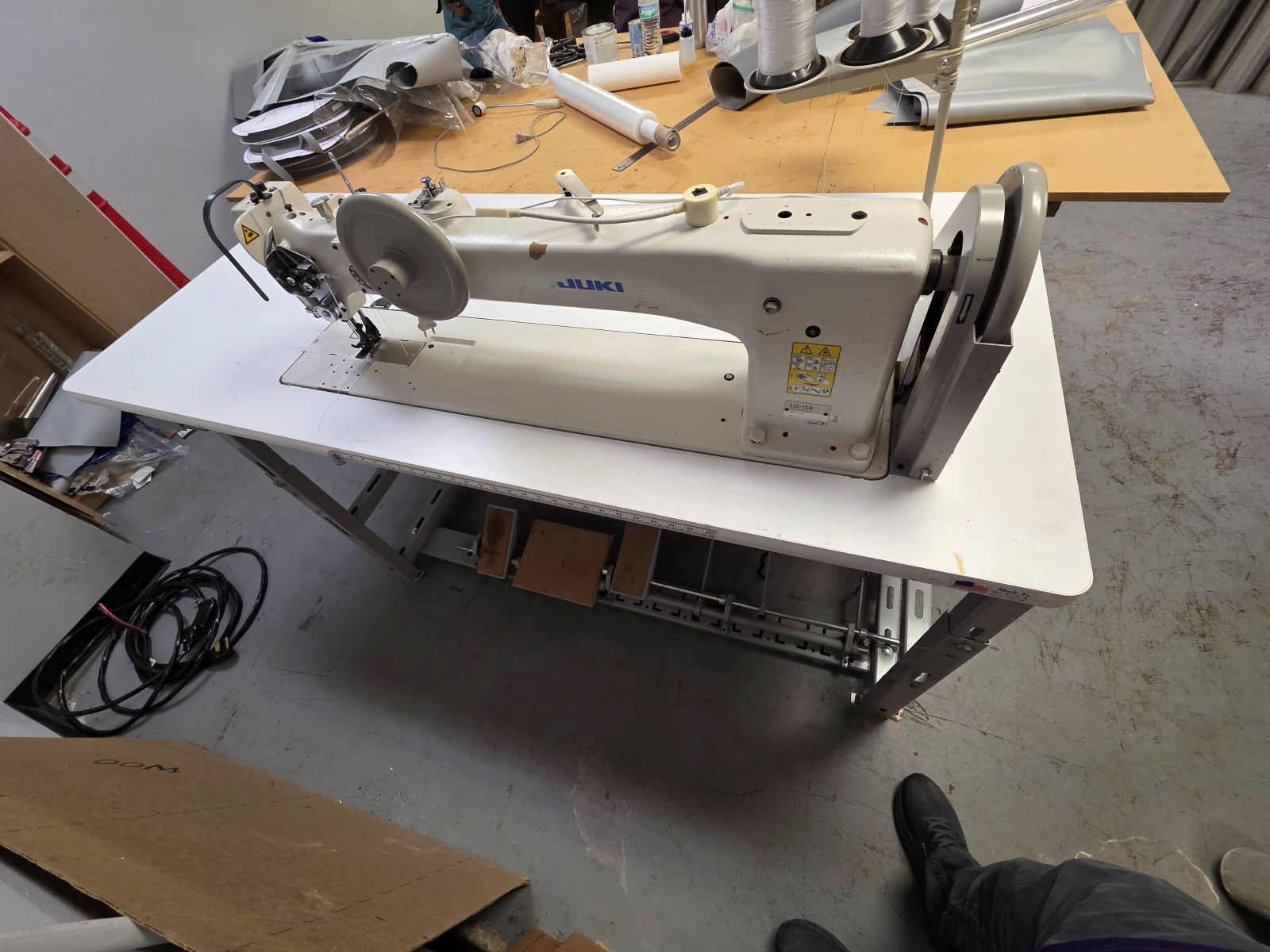

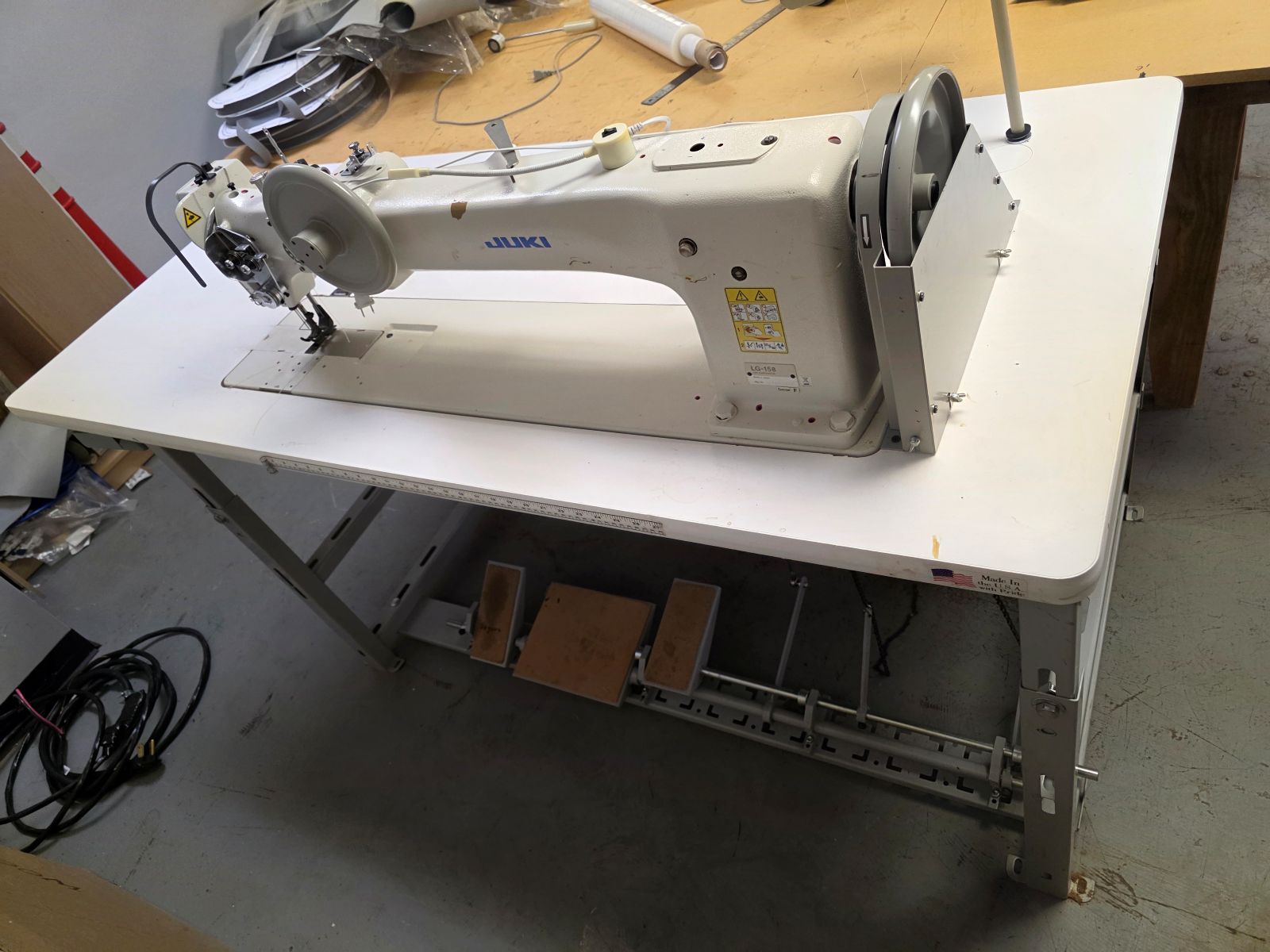

• JUKI LG-158 Sewing Machine (Used)

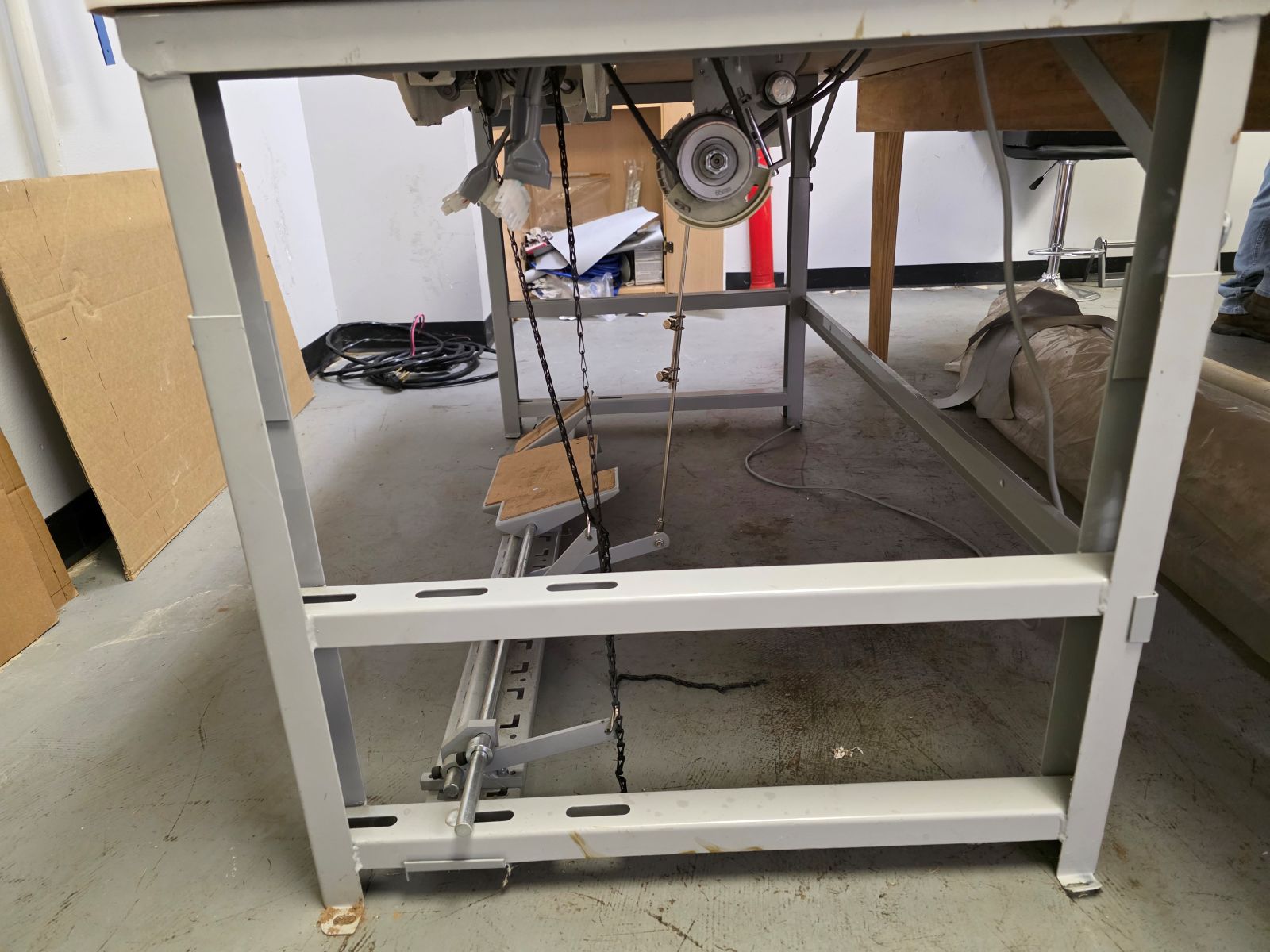

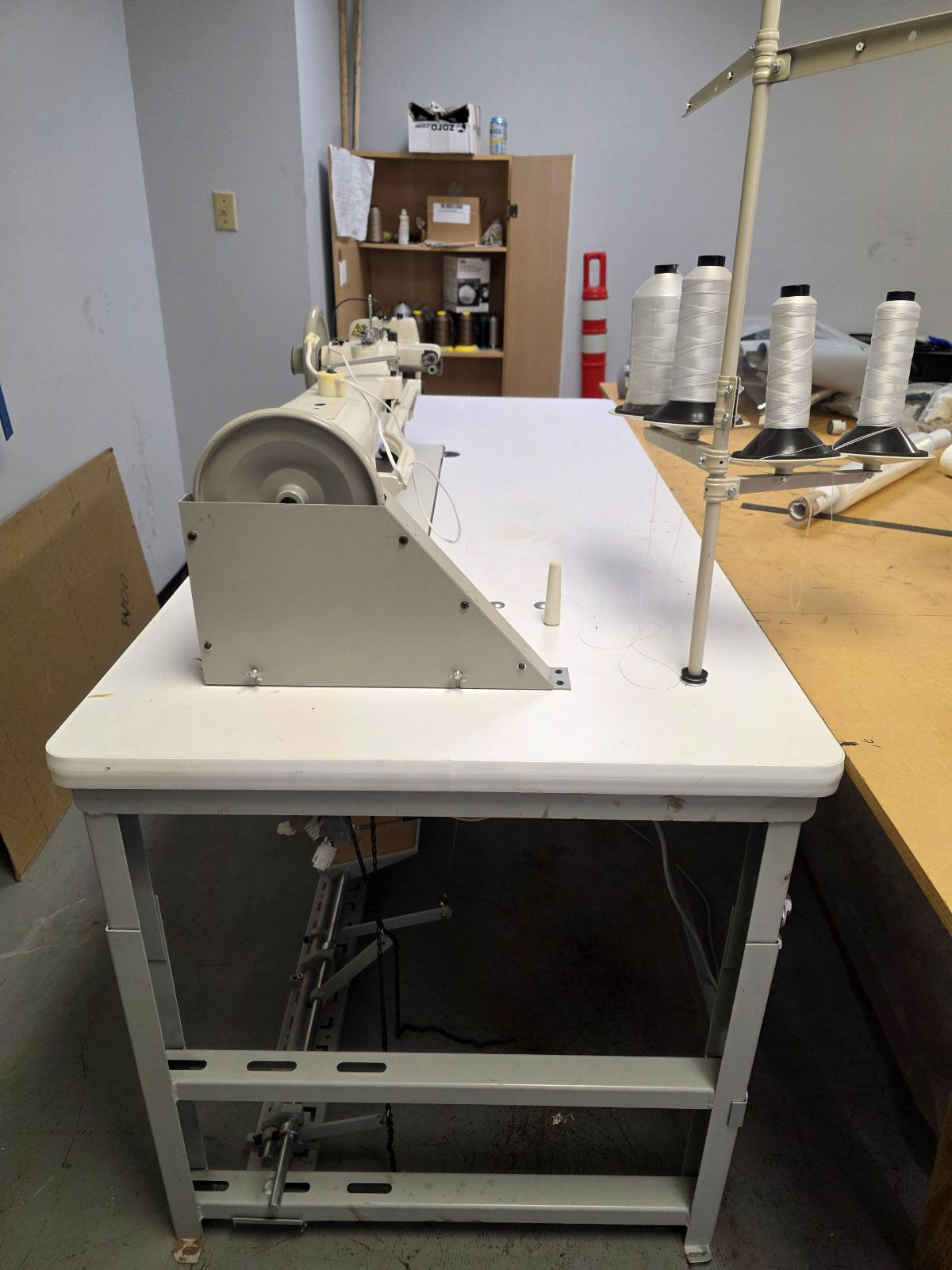

• Industrial Table and Legs

• Servo Motor Not Included

Servo Motor (Optional Upgrade – Not Included)

• Uses up to 90% less power than clutch motors

• Lightweight, quiet, and energy-efficient

• No belts or parts to adjust

• Instant start/stop response

Condition

Used and in new working condition. Machine tested for basic functions. Sold as-is.

NOTE:
This machine was purchased new in 2023 and only used a couple of times. At the time, it proved too large for the materials we were working with. The motor developed a defect, and we attempted to return it for replacement; however, the motor was lost in transit. The replacement process was put on hold and has not been pursued since. Servo Motor cost aroung $300 USD and you can pushase on at your desire specifications and price range.
